Roofing Sheet Double Layer Roll Forming Machine For Metal Roof Sheet Production

Brand Name : FMS

Model Number : Double Layer

Certification : CE,ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 35 sets per month

Delivery Time : 30days

Packaging Details : Main machine is nude,the computer control box is packed by plastic.

Product Description : Roofing Sheet Double Layer Roll Forming Machine For Metal Roof Sheet Production

Production Capacity : 8-12 m/min

Dimension(L*W*H) : 7.5*1.3*1.3 m

Roller material : 45# Forged Steel

Control system : PLC

Rolling thinckness : 0.3-0.8mm

Voltage : 380V 50Hz 3phases

Feeding width : 1250mm

Cutting blade material : Cr 12 High Grade Steel

Main frame : 350H Steel

Weight : 5000 kg

Contact Now

Roofing Sheet Double Layer Roll Forming Machine For Metal Roof Sheet Production

Roofing Sheet Double Layer Roll Forming Machine For Metal Roof Sheet Production .Compared to a single layer roof panel roll forming machine, a double layer roll forming machine is desgined to produce two different kinds of metal sheets which can be one trapezoidal roofing and one roof/wall cladding sheet.
Now our double layer metal roofing corrugated roll forming machine have been exported to many countries,We factory have already machine, welcome to visit and test. we can aslo customize the machine as ur need.

Detailed Parameters:

Part details	Item Name	Specification
Manual uncoiler	carrying capacity	5-8 tons
Manual uncoiler	Stype	Manual
Raw coil	Coil material	steel
Raw coil	Coil thickness	0.3-0.8 mm
Machine body	Roller station	15 station
	Roller material	45# steel
	Shaft material	45# steel
	Shaft diameter	75 mm
	Machine weight	About 6.5 tons
	Machine size	5-7.51.31.3 m
	Speed	8-12 m/min
Cutter	Operate	Hydraulic cutting
Cutter	Blade material	Cr12
Power	Operate	Chain transmission
Power	Chain size	1 inch chain
Control system	PLC brand	Taiwan delta
	Motor power	7.5 kw
	Hydraulic pump power	3 kw
	Voltage	380V 50Hz 3phase
	Machine color	As ur need
	Machine language	Chinese and English

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

Roofing Sheet Double Layer Roll Forming Machine For Metal Roof Sheet Production

Product Tags:

double layer forming machine 12m/min

double layer forming machine PLC

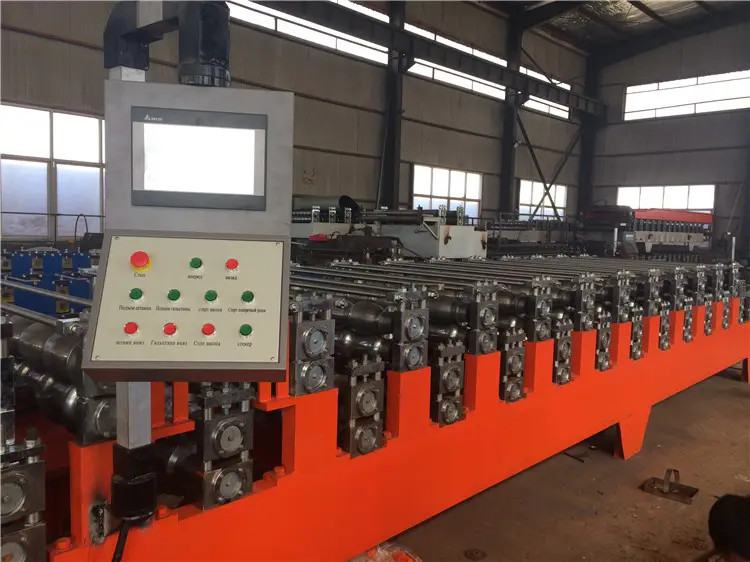

Roofing Sheet Double Layer Roll Forming Machine For Metal Roof Sheet Production Images
