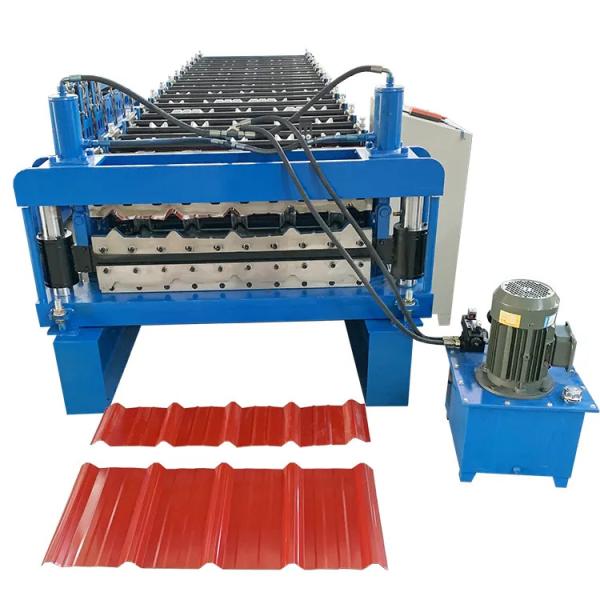

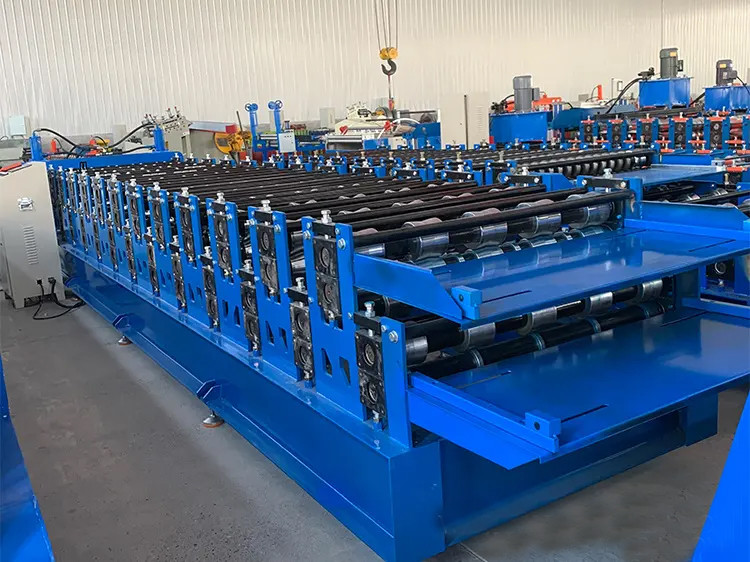

Trapezoidal Tile Double Layer Roll Forming Machine Long Span Roof

  • 1
  • 2

Brand Name : FMS

Model Number : Double Layer

Certification : ISO CE

Place of Origin : CHINA MAINLAND

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C, T/T, D/A, D/P

Supply Ability : 20 Sets Per Month

Delivery Time : 30 Working Days

Packaging Details : 20' FLC

Product Name : Trapezoidal Tile Double Layer Roll Forming Machine Long Span Roof Manufactures

Dimension(L*W*H) : 6.8m*1.35m*1.25m

Raw Material : Galvalume, Galvanized

Working Speed : 8-15 m/min

Rolling thinckness : 0.3-0.8mm

Shaft material : 45# steel

Motor power : 7.5 kw

Pow supply : 380V, 60Hz, 3Ph

width of raw material : 850mm

Weight : 5000 kg

material of roller : 45# Cr plated

Contact Now

Trapezoidal Tile Double Layer Roll Forming Machine Long Span Roof Manufactures

Trapezoidal Tile Double Layer Roll Forming Machine Long Span Roof Manufactures

Control system:
Programmable setting of profile length and quantity, Computed mode has two modes: automatic and manual one.
Language:English, Chinese,Spanish and Russian. The system is easy to operate and use.
Forming system:
Material of the roller : High grade No.45 forged steel. Roller station : 12-14 rows. Thickness of feeding material : 0.3-0.8mm
Cutting system:
Hydraulic cutting file bit
cutting knife material: Cr12
Kind of drive:
The average transmission ratio of the chain drive is accurate, the work is reliable and the efficiency is high; the transmission power is large and the overload capacity is strong.
The plate produced has a flat and beautiful appearance, high strength, and durability. It is widely used in industrial and civil buildings, such as factories, warehouses, gymnasiums, exhibition halls, theaters, etc. House surfaces and walls.

Specification

Total power
11 – 18kw
Speed
4 – 10m/min
Dimension (LxWxH)
(8-11)x(1.6-2.2)x1.8m
Weight of machine
5 – 8 tons
Roller station

12 – 20
Material thickness
0.15 – 0.5mm (G300-G550)
Material width
914;1200;1219;1450mm

Advantage

The metal system is accurate and solid, and will not move over time or with changes in temperature.
There is a wide range of stud widths from 50mm to 146mm to meet varying requirements.
It is a fast and clean system to erect that allows services to pass through easily.
All sections fit together easily and door frames are formed very simply.

Payment terms

30% in advance as down payment

70% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

Trapezoidal Tile Double Layer Roll Forming Machine Long Span Roof


Product Tags:

15m/min trapezoidal roll forming machine



Trapezoidal Tile double layer forming machine



double layer forming machine 8m/min


Trapezoidal Tile Double Layer Roll Forming Machine Long Span Roof Manufactures

Trapezoidal Tile Double Layer Roll Forming Machine Long Span Roof Images
