Metal Steel Sheets Steel Plate Diamond Checker Pattern Leveling Embossing Machine

Brand Name : FMS

Model Number : Embossing Machine

Certification : CE

Place of Origin : china

MOQ : 1set

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 20sets per month

Delivery Time : 45 worl days

Packaging Details : Naked with Plastic Film.

Raw material : GI,Galvanized Sheet, PPGI/Galvanized Sheet

Power(w) : 7.5KW

Thickness : 1.2-2mm

Forming speed : 8-15m/mis

Name : Metal Steel Sheets Steel Plate Diamond Checker Pattern Leveling Embossing Machine

Main electrical control system : PLC

Contact Now

Metal Steel Sheets Steel Plate Diamond Checker Pattern Leveling Embossing Machine

The Embossing Machinehas the following characteristics:

1. Advanced technology: the line adopts continuous coil production after cold bending to determine the precision of the long cutting parts forming shape rules length accurate consistency.Good appearance and high strength of molding workpiece.

2. High productivity: this line only needs 2-3 people to operate, with simple operation and low labor intensity. The production
speed of this line is adjustab le from 10 to 15 meters per minute, and the normal operation speed is 8 to 15 meters per minute.
3. High reliability: the main components of the hydraulic, pneumatic and electrical systems of this line all adopt imported
high-quality components with stable performance and high reliability materials applicable to high technical parameters.

Specification

Warranty of core components	1 Year
Voltage	380V 50Hz
Weight	3000kg
Production Capacity	8-15m/min
Power	7.5Kw
Dimension(LWH)	can be customized
Applicable Material	GI (According to customer requirements)
Production Capacity	8-15M/Min
Voltage	380V.50HZ.3Phase
Roll material	45# high grade steel
Frame thickness	80mm
Core Components	Motor, PLC
Roll stations	up 6 ,down 7
Rolling thinckness	1.2-2mm

Metal Steel Sheets Steel Plate Diamond Checker Pattern Leveling Embossing Machine

Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed

Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.

RFQ

1. Does one machine can only produce one style panel profile?

Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.

2. What can you do if the machine broken?
Our machine's warranty period is 12 months,if the broken parts can't repair,we can send the new parts replace the broken parts ,but you need pay the express cost yourself.if after warranty period,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.

3. Can you be responsible for transport?
Yes,please tell me the destination port or address.we have rich experience in transport.

4. Are you manufacturer or trading company?
We are manufacturer and trading company .

5. Do you provide customized?
Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.

6. How can I trust you that machines pasted testing running before shipping?
1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.

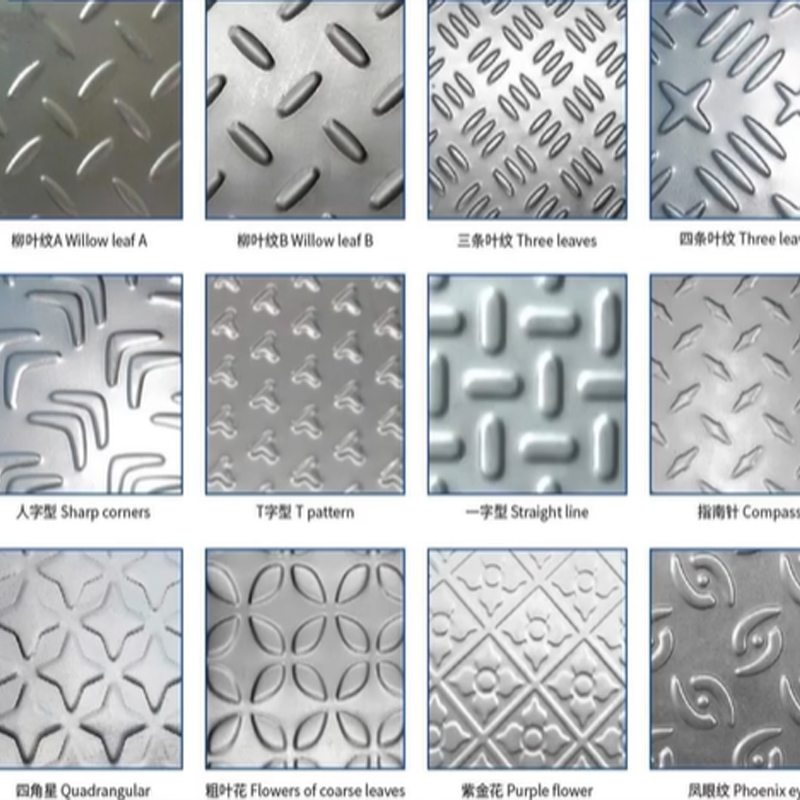

Metal Steel Sheets Steel Plate Diamond Checker Pattern Leveling Embossing Machine Images
